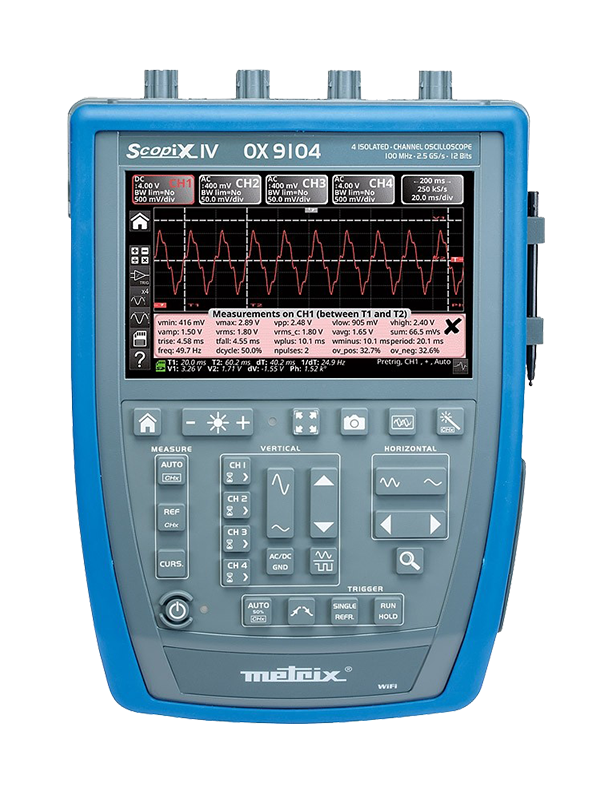

The OX 9104 is a portable, stand-alone, “tablet-icon generation” SCOPIX IV oscilloscope with 4 totally-isolated 600 V channels with a 100 MHz bandwidth. It also offers a memory depth of 100 kpoints per channel, considerably increasing the available duration for recording.

Equipped with unprecedented functions, like all the SCOPIX IV range, the 4-channel / 100 MHz OX 9104 digital oscilloscope is a compact “multi-instrument” offering genuine high performance thanks to its 12-bit converter with a vertical resolution of 0.025%.

In addition to its advanced trigger functions (pulse width, counting, delay), SCOPIX IV proposes 20 automatic measurements per channel linked to cursors for comprehensive analysis.

This oscilloscope benefits from standard and advanced “MATH” functions allowing users to define a mathematical function for each of the traces, along with vertical scaling and definition of the actual physical unit.

Thanks to the real-time FFT function provided simultaneously with the waveform plus qualitative analysis of the harmonics, the distortion of a signals, the pulse response, it ensures effective, accurate diagnostics when searching for a source of noise in the logic circuits.
