EXPAND YOUR OFFERING WITH HIGH-PERFORMANCE
TEST SOLUTIONS

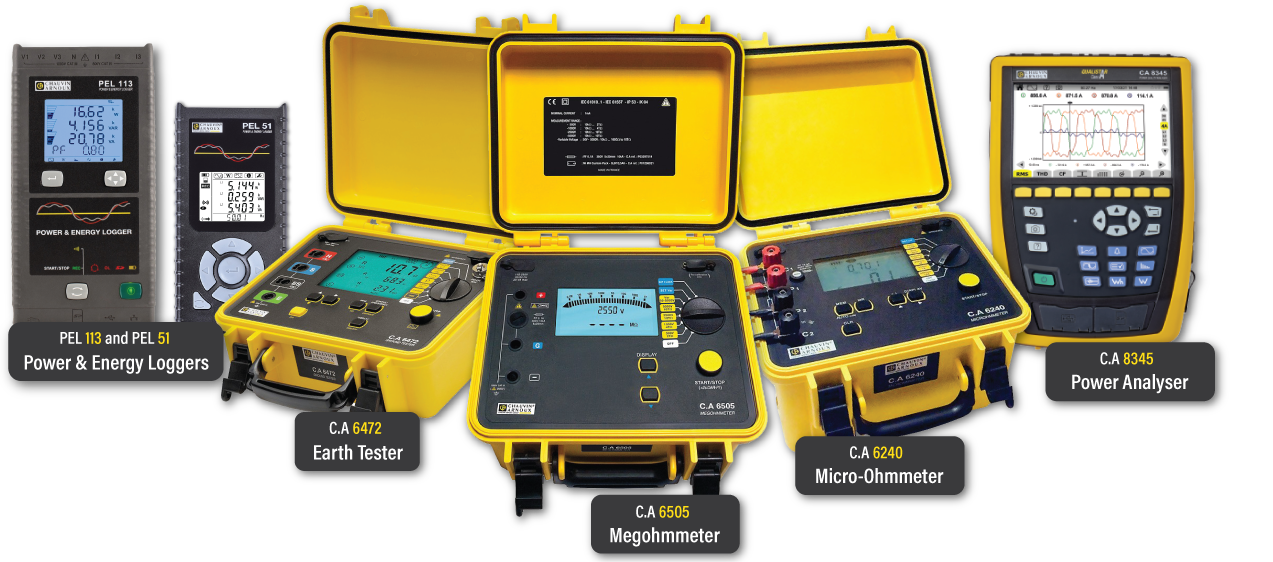

Equip your customers with a comprehensive range of trusted tools, including the C.A 6505 5kV Megohmmeter, C.A 6240 Micro-Ohmmeter, C.A 6472 Earth Tester, PEL 113 Three-Phase Power & Energy Logger, and PEL 51 Portable Single-Phase Power & Energy Logger. From high-voltage insulation testing to portable energy logging, these instruments offer the precision, durability, and versatility professionals demand. Enhance your portfolio with reliable solutions tailored for diverse testing and measurement needs.
C.A 6505 5kV Megohmmeter
The C.A 6505 5 kV megohmmeter makes industrial equipment inspection and maintenance testing particularly simple. In its site-proof casing suitable for even the severest conditions, the C.A 6505 offers optimum accuracy and expertise for insulation testing. As soon as it is connected, it measures the voltage, frequency, capacitance and residual current values on the installation or equipment to be tested.
- Fixed 500/1,000/2,500/5,000 V DC test voltage or programmable from 40 V to 5,100 V DC
- Measurement range: 10 kΩ to 10 TΩ
- Programmable test duration
- Calculation of DAR & PI quality ratios
- Measurement of voltage, capacitance and leakage current
- LCD screen with bargraph
- Power supply by NiMh rechargeable battery
- Compliant with IEC 61557
- IP53 protection
- IEC 61010 1,000 V CAT III safety
- Dimensions: 270 x 250 x 180 mm / 4.3 kg
C.A 6240 Micro-Ohmmeter
A great combination of design and function to simplify testing.
- 4-wire measurement method with test current up to 10A and current reversal function
- Measurement ranges from 5 µΩ to 400 Ω
- Test current up to 10 A
- Max. resolution 1 µΩ
- Automatic power off
- Power supply: NiMH rechargeable battery
- Storage: 100 measurements
- Communication via USB optical link
- Data export software
- IP53 protection
- Electrical safety: IEC 61010-1 CAT III 50 V
- Large LCD Display
- Offers protection against overloads up to 500V
For more information or to arrange an on-site demonstration, please feel free to contact us.
C.A 6472 Earth Tester
The C.A 6472 can be used for quick, comprehensive surveys of all earthing configurations, offering all the necessary earth measurement functions in a single instrument. When used with the C.A 6474, it can also perform pylon earth measurements, making it a unique but essential tool for diagnostics and maintenance on pylon networks.
- 3P measurement up to 10 kΩ and stray voltages up to 60 V RMS
- 4P and selective 4P measurement
- Earth loop measurement with 2 clamps from 0.01 Ω to 500 Ω
- Earth coupling measurement
- Soil resistivity measurement: simply program the distances used for the measurement and the tester then calculates r using the Wenner oe Schlumberger methods
- Ground potential measurement
- Continuity and resistance measurement
- Pylon earth measurement with the C.A 6474
PEL 113 - Power & Energy Logger
The PEL113 three-phase power and energy logger is ideal for electrical diagnostics and energy audits. Identify supply issues, log demand, and reduce consumption by improving energy efficiency.
- Record all voltage, current, power and energy values
- Measure maximum demand, load balance and PF
- Get a breakdown of energy losses and individual harmonics
- Log for a few seconds to a few months
For more information or to arrange an on-site demonstration, please feel free to contact us.
PEL 51 - Power & Energy Logger
Offering a simple yet extensive view of electrical data, PEL51 power and energy logger has a user-friendly interface and helps avoid measurement errors or any uncertainty.
- Designed for smaller residential projects and commercial installations
- Monitor single-phase installations, circuits and equipment
- Identify and document potential energy savings
- Offers a large easy-to-read backlit display
- View results in real-time or log over a longer period
- Save measurements on SD or SDHC card
- Retrieve data on the logger or through your WiFi connection
- Get free configuration and analysis software
For more information or to arrange an on-site demonstration, please feel free to contact us.
