C.A 6417
EARTH CLAMP
- Large measurement range: 1,500 Ω / 500 μ H / 40A
- Alarms on Ω , A and V
- Automatic Pre-Hold mode when the clamp is opened
- Real-time clock for time/date stamping of measurements
- 300 time/date-stamped measurements
- Automatic calibration of the jaw gap at power-up
- Bluetooth communication interface
C.A 6418
EARTH CLAMP
- Wide measurement range from 0.010 Ω to 1200 Ω
- Current from 0.5 mA to 20 A
- Alarms configurable for Ω and A
- Automatic Pre-Hold mode when the clamp is opened
- 300 time/date-stamped measurements
- Automatic calibration of the jaw gap at power-up
- Buzzer and automatic power-off

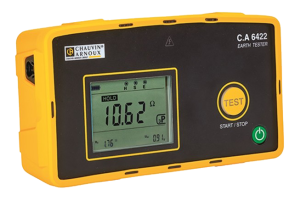

C.A 6422
EARTH TESTER
- Built for intensive field use in challenging environments
- Colour-coded, easy-to-access controls for effortless operation (glove-friendly)
- Backlit LCD screen for easy viewing in all conditions
- LED alerts for hazardous and noise voltage detection
- Supports 2P and 3P earth resistance measurements
- Runs on 6 x LR6 or AA batteries for extended use
- Meets IEC 61557-1 and IEC 61557-4 safety standards

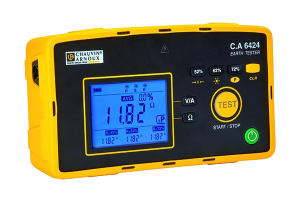

C.A 6424
EARTH TESTER
- Wide voltage ranges from 0 to 600 V for versatile testing
- 2P Resistance: 0.05 Ω to 50 kΩ
- 3P Earth: 0.5 Ω to 50 kΩ
- Flexible one-shot or permanent measurement options
- Includes RH stake resistance
- Comprises of USE voltage measurement
- Current Measurement 0.5 mA to 60 A with G72 clamp for comprehensive system testing
- Smart Power Management: Automatic power-off to extend battery life
- Meets IEC 61557-1 and IEC 61557-4 for safety and reliability
C.A 6460
DIGITAL EARTH TESTER
- Measures resistivity, earth resistance, and coupling between two earths
- Measurement capabilities 0.01 to 2,000 Ω with 3 automatic ranges
- Easily change from 4-wire to 3-wire method with removable captive bar
- 3 fault presence indicators to ensure accurate readings
- 128 Hz frequency for precise results
- Colour-coded terminals for quick, secure stake connections
- Meets IEC 61557-1 and IEC 61557-5 for reliable performance
- Compliant with EN 61010 standards for high-level protection
C.A 6470N
EARTH TESTER
- Wide measurement range 0.001 Ω to 100 kΩ
- Adjustable frequency between 41 Hz and 512 Hz
- Soil Resistivity Testing
- Accurate 4P earth measurement
- Offers IP53 protection for durability
- Complies with IEC 61557-1-4-5 for
performance and safety - Buzzer and automatic power-off
- Certified to IEC 61010 CAT IV 50V for high-level protection
